Understanding the Galvanometer

Oct 13, 2025 by magicalceylontours.com 13 views

Introduction

A galvanometer is a sensitive device used to measure small currents. However, in many cases, we need to measure voltage levels, which requires a device that can handle higher currents. In this article, we will discuss how to convert a galvanometer to a voltmeter by adding an external resistance in series. We will also calculate the required resistance values for a given galvanometer.

Understanding the Galvanometer

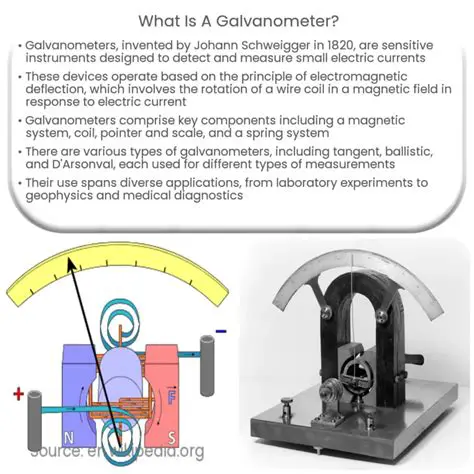

A galvanometer is a device that measures the current flowing through it. It consists of a coil of wire suspended in a magnetic field. When a current flows through the coil, it produces a torque that causes the coil to rotate. The rotation is proportional to the current flowing through the coil. The galvanometer has an internal resistance, which is the resistance of the coil itself.

Calculating the Required Resistance

To convert a galvanometer to a voltmeter, we need to add an external resistance in series with the galvanometer. The external resistance should be such that it allows the galvanometer to reach full-scale deflection for a given voltage level. Let's consider the following problem:

A galvanometer with an internal resistance of $100 \Omega$ gives a full-scale deflection for a current of 10 mA. Calculate the values of the resistance necessary to convert the galvanometer to:

(i) A Voltmeter Reaching Up to 5 V

To calculate the required resistance, we need to use the formula:

R = \frac{V}{I} - r

where $R$ is the total resistance, $V$ is the voltage level, $I$ is the current level, and $r$ is the internal resistance of the galvanometer.

In this case, we want the galvanometer to reach full-scale deflection for a voltage of 5 V. The current level is 10 mA, and the internal resistance is 100 $\Omega$ . Plugging in these values, we get:

R = \frac{5}{0.01} - 100 = 500 - 100 = 400 \Omega

Therefore, we need to add a resistance of 400 $\Omega$ in series with the galvanometer to convert it to a voltmeter reaching up to 5 V.

(ii) A Voltmeter Reaching Up to 10 V

To calculate the required resistance for a voltage level of 10 V, we can use the same formula:

R = \frac{V}{I} - r

In this case, the voltage level is 10 V, and the current level is still 10 mA. The internal resistance is 100 $\Omega$ . Plugging in these values, we get:

R = \frac{10}{0.01} - 100 = 1000 - 100 = 900 \Omega

Therefore, we need to add a resistance of 900 $\Omega$ in series with the galvanometer to convert it to a voltmeter reaching up to 10 V.

Conclusion

In this article, we discussed how to convert a galvanometer to a voltmeter by adding an external resistance in series. We calculated the required resistance values for a given galvanometer and voltage level. The required resistance is calculated using the formula:

R = \frac{V}{I} - r

where $R$ is the total resistance, $V$ is the voltage level, $I$ is the current level, and $r$ is the internal resistance of the galvanometer.

Applications of Voltmeters

Voltmeters are widely used in various applications, including:

Measuring voltage levels: Voltmeters are used to measure voltage levels in electrical circuits.
Testing electrical equipment: Voltmeters are used to test electrical equipment, such as motors and generators.
Measuring power consumption: Voltmeters are used to measure power consumption in electrical circuits.
Measuring voltage drops: Voltmeters are used to measure voltage drops in electrical circuits.

Limitations of Voltmeters

Voltmeters have some limitations, including:

High resistance: Voltmeters have high resistance, which can affect the accuracy of the measurement.
Low current range: Voltmeters typically have a low current range, which can limit their use in high-current applications.
High voltage range: Voltmeters typically have a high voltage range, which can limit their use in low-voltage applications.

Future Developments

In the future, we can expect to see advancements in voltmeter technology, including:

High-accuracy voltmeters: Future voltmeters will be designed to provide high accuracy and precision.
Low-cost voltmeters: Future voltmeters will be designed to be low-cost and affordable.
Portable voltmeters: Future voltmeters will be designed to be portable and easy to use.

Conclusion

In conclusion, converting a galvanometer to a voltmeter requires the addition of an external resistance in series. The required resistance is calculated using the formula:

R = \frac{V}{I} - r

where $R$ is the total resistance, $V$ is the voltage level, $I$ is the current level, and $r$ is the internal resistance of the galvanometer. Voltmeters are widely used in various applications, including measuring voltage levels, testing electrical equipment, measuring power consumption, and measuring voltage drops. However, they have some limitations, including high resistance, low current range, and high voltage range. Future developments in voltmeter technology will focus on high-accuracy, low-cost, and portable voltmeters.

Introduction

In our previous article, we discussed how to convert a galvanometer to a voltmeter by adding an external resistance in series. We also calculated the required resistance values for a given galvanometer and voltage level. In this article, we will answer some frequently asked questions (FAQs) about converting a galvanometer to a voltmeter.

Q: What is the purpose of converting a galvanometer to a voltmeter?

A: The purpose of converting a galvanometer to a voltmeter is to measure voltage levels in electrical circuits. Galvanometers are sensitive devices that measure small currents, but they are not designed to measure voltage levels. By adding an external resistance in series, we can convert a galvanometer to a voltmeter that can measure voltage levels.

Q: What is the formula for calculating the required resistance?

A: The formula for calculating the required resistance is:

R = \frac{V}{I} - r

where $R$ is the total resistance, $V$ is the voltage level, $I$ is the current level, and $r$ is the internal resistance of the galvanometer.

Q: What is the significance of the internal resistance of the galvanometer?

A: The internal resistance of the galvanometer is the resistance of the coil itself. It is an important factor in calculating the required resistance for converting a galvanometer to a voltmeter.

Q: Can I use any type of resistance for converting a galvanometer to a voltmeter?

A: No, you cannot use any type of resistance for converting a galvanometer to a voltmeter. The resistance should be of a high value, typically in the range of kilohms, to ensure that the galvanometer reaches full-scale deflection for a given voltage level.

Q: How do I choose the correct resistance value for converting a galvanometer to a voltmeter?

A: To choose the correct resistance value, you need to consider the voltage level, current level, and internal resistance of the galvanometer. You can use the formula:

R = \frac{V}{I} - r

to calculate the required resistance value.

Q: Can I use a variable resistor for converting a galvanometer to a voltmeter?

A: Yes, you can use a variable resistor for converting a galvanometer to a voltmeter. A variable resistor allows you to adjust the resistance value to suit the specific requirements of the application.

Q: What are the limitations of converting a galvanometer to a voltmeter?

A: The limitations of converting a galvanometer to a voltmeter include:

High resistance: The resistance value required for converting a galvanometer to a voltmeter is typically high, which can affect the accuracy of the measurement.
Low current range: The current range of a galvanometer is typically low, which can limit its use in high-current applications.
High voltage range: The voltage range of a galvanometer is typically high, which can limit its use in low-voltage applications.

Q: Can I use a digital multimeter (DMM) instead of a galvanometer for measuring voltage levels?

A: Yes, you can use a digital multimeter (DMM) instead of a galvanometer for measuring voltage levels. DMMs are more accurate and convenient to use than galvanometers.

Q: What are the advantages of using a DMM instead of a galvanometer for measuring voltage levels?

A: The advantages of using a DMM instead of a galvanometer for measuring voltage levels include:

High accuracy: DMMs are more accurate than galvanometers.
Convenience: DMMs are more convenient to use than galvanometers.
Wide range: DMMs can measure a wide range of voltage levels.

Conclusion

In conclusion, converting a galvanometer to a voltmeter requires the addition of an external resistance in series. The required resistance is calculated using the formula:

R = \frac{V}{I} - r

where $R$ is the total resistance, $V$ is the voltage level, $I$ is the current level, and $r$ is the internal resistance of the galvanometer. We hope that this article has answered some of the frequently asked questions about converting a galvanometer to a voltmeter.
