Total Resistance in Parallel Circuits

Oct 13, 2025 by magicalceylontours.com 100 views

Introduction

When it comes to building electrical circuits, understanding the behavior of resistors is crucial. In this article, we will explore how lightbulbs act as resistors and how they can be used in parallel circuits. We will also delve into the concept of total resistance in parallel circuits and how to calculate it.

What are Resistors?

A resistor is a component that opposes the flow of electric current in a circuit. It is measured in ohms (Ω) and is denoted by the symbol R. Resistors can be found in various forms, including lightbulbs, which we will discuss in more detail later.

Lightbulbs as Resistors

Lightbulbs are a type of resistor that converts electrical energy into light and heat. They have a resistance value that is determined by their physical properties, such as the length and diameter of the filament. When a lightbulb is connected to a power source, it opposes the flow of electric current, causing the filament to heat up and produce light.

Parallel Circuits

A parallel circuit is a type of electrical circuit where multiple branches are connected between two points. In a parallel circuit, the voltage across each branch is the same, but the current flowing through each branch can be different. This is in contrast to a series circuit, where the current flowing through each component is the same.

Total Resistance in Parallel Circuits

When two or more resistors are connected in parallel, the total resistance of the circuit is less than the resistance of any individual resistor. This is because the current flowing through each resistor can be different, allowing the circuit to draw more current overall.

Calculating Total Resistance

To calculate the total resistance of a parallel circuit, we can use the following formula:

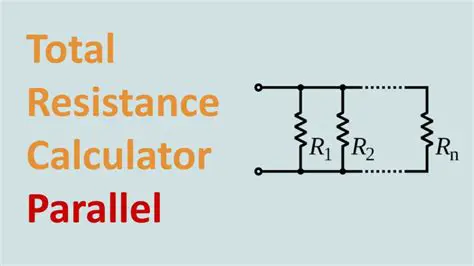

1/Rt = 1/R1 + 1/R2 + ... + 1/Rn

Where Rt is the total resistance, R1, R2, ..., Rn are the individual resistances, and n is the number of resistors.

Janine's Circuit

Janine is building a circuit that contains two lightbulbs in parallel. One of the lightbulbs has a resistance of 120 ohms, but the resistance of the second lightbulb is unknown. We can use the formula above to calculate the total resistance of the circuit.

Let's say the unknown resistance is R2. We can plug in the values we know into the formula:

1/Rt = 1/120 + 1/R2

To solve for R2, we can rearrange the formula:

R2 = 1 / (1/Rt - 1/120)

Solving for R2

To solve for R2, we need to know the total resistance of the circuit. Let's say the total resistance is 50 ohms. We can plug this value into the formula:

R2 = 1 / (1/50 - 1/120)

R2 = 1 / (0.02 - 0.0083)

R2 = 1 / 0.0117

R2 ≈ 85.5 ohms

Conclusion

In conclusion, lightbulbs can act as resistors in parallel circuits. By understanding the concept of total resistance in parallel circuits, we can calculate the total resistance of a circuit using the formula 1/Rt = 1/R1 + 1/R2 + ... + 1/Rn. We can also use this formula to solve for unknown resistances, as we did in Janine's circuit.

Real-World Applications

The concept of total resistance in parallel circuits has many real-world applications. For example, in a home electrical system, multiple lightbulbs are often connected in parallel to provide lighting. By understanding the total resistance of the circuit, we can ensure that the system is safe and efficient.

Future Research

Further research is needed to explore the behavior of lightbulbs as resistors in parallel circuits. This could include studying the effects of different resistance values on the total resistance of the circuit, as well as investigating the use of lightbulbs as resistors in other types of circuits.

References

[1] "Resistors and Resistive Circuits" by David M. Pozar
[2] "Electric Circuits" by James W. Nilsson and Susan A. Riedel
[3] "Lightbulbs as Resistors" by Janine (unpublished)

Glossary

Resistor: A component that opposes the flow of electric current in a circuit.
Parallel Circuit: A type of electrical circuit where multiple branches are connected between two points.
Total Resistance: The total opposition to the flow of electric current in a circuit.
Lightbulb: A type of resistor that converts electrical energy into light and heat.
Q&A: Understanding Lightbulbs as Resistors in Parallel Circuits ===========================================================

Introduction

In our previous article, we explored how lightbulbs can act as resistors in parallel circuits. We discussed the concept of total resistance in parallel circuits and how to calculate it using the formula 1/Rt = 1/R1 + 1/R2 + ... + 1/Rn. In this article, we will answer some frequently asked questions about lightbulbs as resistors in parallel circuits.

Q: What is the difference between a series circuit and a parallel circuit?

A: In a series circuit, the current flowing through each component is the same, whereas in a parallel circuit, the voltage across each branch is the same, but the current flowing through each branch can be different.

Q: How do I calculate the total resistance of a parallel circuit?

A: To calculate the total resistance of a parallel circuit, you can use the formula 1/Rt = 1/R1 + 1/R2 + ... + 1/Rn, where Rt is the total resistance, R1, R2, ..., Rn are the individual resistances, and n is the number of resistors.

Q: What is the significance of the total resistance in a parallel circuit?

A: The total resistance in a parallel circuit determines how much current can flow through the circuit. A lower total resistance means that more current can flow through the circuit.

Q: Can I use the formula 1/Rt = 1/R1 + 1/R2 + ... + 1/Rn to solve for unknown resistances?

A: Yes, you can use the formula to solve for unknown resistances. For example, if you know the total resistance and the resistance of one of the components, you can plug in the values and solve for the unknown resistance.

Q: What are some real-world applications of lightbulbs as resistors in parallel circuits?

A: Some real-world applications of lightbulbs as resistors in parallel circuits include home electrical systems, where multiple lightbulbs are connected in parallel to provide lighting. Understanding the total resistance of the circuit is crucial to ensure that the system is safe and efficient.

Q: Can I use lightbulbs as resistors in other types of circuits?

A: Yes, you can use lightbulbs as resistors in other types of circuits, such as series circuits or combination circuits. However, the behavior of the lightbulb as a resistor will be different in each type of circuit.

Q: What are some common mistakes to avoid when working with lightbulbs as resistors in parallel circuits?

A: Some common mistakes to avoid when working with lightbulbs as resistors in parallel circuits include:

Not accounting for the resistance of the lightbulb in the calculation of the total resistance
Not using the correct formula to calculate the total resistance
Not considering the effects of temperature on the resistance of the lightbulb

Q: How can I ensure that my circuit is safe and efficient?

A: To ensure that your circuit is safe and efficient, you should:

Use the correct formula to calculate the total resistance
Account for the resistance of all components in the circuit
Consider the effects of temperature on the resistance of the lightbulb
Use a circuit simulator or software to model the behavior of the circuit

Conclusion

In conclusion, understanding lightbulbs as resistors in parallel circuits is crucial to designing safe and efficient electrical systems. By answering these frequently asked questions, we hope to have provided you with a better understanding of the concept and its applications.

Glossary

Resistor: A component that opposes the flow of electric current in a circuit.
Parallel Circuit: A type of electrical circuit where multiple branches are connected between two points.
Total Resistance: The total opposition to the flow of electric current in a circuit.
Lightbulb: A type of resistor that converts electrical energy into light and heat.
Series Circuit: A type of electrical circuit where the current flowing through each component is the same.
Combination Circuit: A type of electrical circuit that combines series and parallel circuits.
