**If a 120V Circuit Carries a 31 Amp Load Through a 58-Foot Run of #8 Gauge Copper Wire: Understanding Voltage Drop**

What is Voltage Drop?

Voltage drop, also known as voltage loss, is the reduction in voltage that occurs as electrical current flows through a conductor, such as a wire. It is an essential consideration in electrical design and installation, as excessive voltage drop can lead to reduced system performance, overheating, and even equipment failure.

Calculating Voltage Drop

To calculate voltage drop, we need to consider several factors, including:

Voltage (V): The nominal voltage of the circuit, in this case, 120V.
Current (I): The load current, which is 31 amps in this scenario.
Conductor Length (L): The distance over which the current flows, which is 58 feet in this case.
Conductor Gauge: The size of the wire, which is #8 gauge copper wire in this scenario.
K-Factor: A constant that depends on the conductor material and size, which is 12.9 for copper wire.

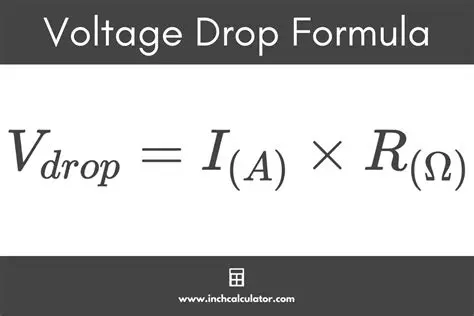

The Formula for Voltage Drop

The formula for voltage drop is:

ΔV = (I × L × K) / A

Where:

ΔV is the voltage drop in volts (V)
I is the current in amperes (A)
L is the conductor length in feet (ft)
K is the K-factor
A is the conductor area in circular mils (cmil)

Converting Conductor Gauge to Area

To calculate the conductor area, we need to convert the gauge to a circular mil value. The area of a #8 gauge copper wire is approximately 10.4 cmil.

Calculating Voltage Drop

Now, let's plug in the values:

ΔV = (31 A × 58 ft × 12.9) / 10.4 cmil

ΔV ≈ 4.43 V

What Does This Mean?

This means that the voltage drop at the end of the circuit is approximately 4.43 volts. This is a relatively small voltage drop, and it is unlikely to cause any significant issues with the circuit.

Q&A

Q: What is the significance of the K-factor in voltage drop calculations?

A: The K-factor is a constant that depends on the conductor material and size. It is used to account for the resistance of the conductor and is essential for accurate voltage drop calculations.

Q: How does conductor gauge affect voltage drop?

A: A smaller conductor gauge (e.g., #8) will result in a higher voltage drop compared to a larger conductor gauge (e.g., #4).

Q: Can voltage drop be reduced?

A: Yes, voltage drop can be reduced by:

Increasing the conductor size (gauge)
Reducing the conductor length
Increasing the system voltage
Using a conductor with a lower K-factor

Q: What are the consequences of excessive voltage drop?

A: Excessive voltage drop can lead to:

Reduced system performance
Overheating of equipment
Equipment failure
Increased energy consumption

Conclusion

Voltage drop is an essential consideration in electrical design and installation. By understanding the factors that affect voltage drop and using the correct formulas, we can ensure that our electrical systems operate safely and efficiently. Remember to always consider the K-factor, conductor gauge, and conductor length when calculating voltage drop.

Additional Resources

National Electric Code (NEC) - Article 210: Branch Circuits
American Wire Gauge (AWG) - Conductor Size Chart
K-Factor Chart - Copper Wire
