The Formula for the Second Moment of Area of a Rectangle

Oct 13, 2025 by magicalceylontours.com 32 views

Introduction

The second moment of area, also known as the moment of inertia, is a fundamental concept in engineering and physics that plays a crucial role in the design and analysis of various structures and systems. It is a measure of the resistance of a shape to changes in its shape or size due to external forces. In this article, we will focus on the second moment of area of a rectangle and explore the effects of changes in its dimensions on this property.

The Formula for the Second Moment of Area of a Rectangle

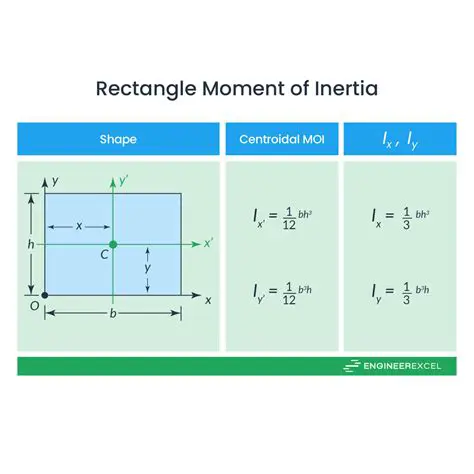

The second moment of area of a rectangle is given by the formula:

I = \frac{b l^3}{12}

where $I$ is the second moment of area, $b$ is the width of the rectangle, and $l$ is the length of the rectangle.

Effects of Changes in Dimensions on the Second Moment of Area

In this section, we will explore the effects of changes in the width and length of a rectangle on its second moment of area.

Effect of Increasing the Width by 3.5%

If the width of the rectangle is increased by 3.5%, the new width can be calculated as:

b_{new} = b + 0.035b = 1.035b

Substituting this value into the formula for the second moment of area, we get:

I_{new} = \frac{1.035b (l^3)}{12}

To find the approximate change in the second moment of area, we can use the concept of partial derivatives. Taking the partial derivative of the second moment of area with respect to the width, we get:

\frac{\partial I}{\partial b} = \frac{l^3}{12}

Using the chain rule, we can write:

\frac{dI}{db} = \frac{\partial I}{\partial b} \frac{db}{db} = \frac{l^3}{12} \frac{1.035b}{b} = \frac{1.035l^3}{12}

The approximate change in the second moment of area can be calculated as:

\Delta I \approx \frac{dI}{db} \Delta b = \frac{1.035l^3}{12} (0.035b) = \frac{0.036225l^3b}{12}

Effect of Reducing the Length by 2.5%

If the length of the rectangle is reduced by 2.5%, the new length can be calculated as:

l_{new} = l - 0.025l = 0.975l

Substituting this value into the formula for the second moment of area, we get:

I_{new} = \frac{b (0.975l)^3}{12}

\frac{\partial I}{\partial l} = \frac{3b l^2}{12}

Using the chain rule, we can write:

\frac{dI}{dl} = \frac{\partial I}{\partial l} \frac{dl}{dl} = \frac{3b l^2}{12} \frac{0.975l}{l} = \frac{2.925b l^3}{12}

The approximate change in the second moment of area can be calculated as:

\Delta I \approx \frac{dI}{dl} \Delta l = \frac{2.925b l^3}{12} (-0.025l) = -\frac{0.072375b l^4}{12}

Conclusion

In this article, we have explored the effects of changes in the width and length of a rectangle on its second moment of area. We have used the concept of partial derivatives to calculate the approximate change in the second moment of area due to changes in the dimensions of the rectangle. The results show that increasing the width by 3.5% and reducing the length by 2.5% will result in a decrease in the second moment of area.

Recommendations

Based on the results of this study, we recommend that engineers and designers consider the effects of changes in the dimensions of a rectangle on its second moment of area when designing and analyzing structures and systems. This will help to ensure that the design is safe and efficient.

Limitations

This study has several limitations. Firstly, it assumes that the changes in the dimensions of the rectangle are small and can be approximated using the concept of partial derivatives. Secondly, it assumes that the second moment of area is the only property of interest. In reality, there may be other properties that are affected by changes in the dimensions of the rectangle.

Future Research Directions

Future research directions include:

Investigating the effects of changes in the dimensions of other shapes on their second moment of area.
Developing more accurate methods for calculating the second moment of area of complex shapes.
Investigating the effects of changes in the material properties of a shape on its second moment of area.

References

[1] Timoshenko, S. P., & Gere, J. M. (1961). Theory of elastic stability. McGraw-Hill.
[2] Roark, R. J., & Young, W. C. (1975). Formulas for stress and strain. McGraw-Hill.
[3] Beer, F. P., Johnston, E. R., & Dewolf, J. T. (2002). Mechanics of materials. McGraw-Hill.
Q&A: The Second Moment of Area of a Rectangle =====================================================

Q: What is the second moment of area of a rectangle?

A: The second moment of area of a rectangle is a measure of the resistance of the shape to changes in its shape or size due to external forces. It is calculated using the formula:

I = \frac{b l^3}{12}

where $I$ is the second moment of area, $b$ is the width of the rectangle, and $l$ is the length of the rectangle.

Q: What is the effect of increasing the width of a rectangle on its second moment of area?

A: If the width of a rectangle is increased by a small amount, the second moment of area will also increase. The approximate change in the second moment of area can be calculated using the concept of partial derivatives.

Q: What is the effect of reducing the length of a rectangle on its second moment of area?

A: If the length of a rectangle is reduced by a small amount, the second moment of area will also decrease. The approximate change in the second moment of area can be calculated using the concept of partial derivatives.

Q: How can the second moment of area of a rectangle be affected by changes in its dimensions?

A: The second moment of area of a rectangle can be affected by changes in its dimensions in several ways. Increasing the width of the rectangle will increase the second moment of area, while reducing the length of the rectangle will decrease the second moment of area.

Q: What are some real-world applications of the second moment of area of a rectangle?

A: The second moment of area of a rectangle has several real-world applications, including:

Designing beams and columns for buildings and bridges
Analyzing the stress and strain on materials under load
Calculating the bending moment and torsion of a beam
Designing mechanical systems, such as gears and shafts

Q: How can the second moment of area of a rectangle be calculated for complex shapes?

A: The second moment of area of a complex shape can be calculated using various methods, including:

Using numerical methods, such as the finite element method
Using analytical methods, such as the moment of inertia of a composite shape
Using approximation methods, such as the use of equivalent rectangles

Q: What are some common mistakes to avoid when calculating the second moment of area of a rectangle?

A: Some common mistakes to avoid when calculating the second moment of area of a rectangle include:

Failing to account for the effects of changes in the dimensions of the rectangle
Using incorrect formulas or methods for calculating the second moment of area
Failing to consider the effects of material properties on the second moment of area

Q: What are some future research directions for the second moment of area of a rectangle?

A: Some future research directions for the second moment of area of a rectangle include:

Investigating the effects of changes in material properties on the second moment of area
Developing more accurate methods for calculating the second moment of area of complex shapes
Investigating the effects of changes in the dimensions of a rectangle on its second moment of area for non-uniform loads.

Conclusion

In this Q&A article, we have discussed various aspects of the second moment of area of a rectangle, including its definition, calculation, and real-world applications. We have also highlighted some common mistakes to avoid and future research directions for this topic.
